Equipped with efficient tension compensation algorithm.
One set of overlap platforms, the overlapping less than 10cm.
Easy operation,can get high automation production
Equipped with differential shafts ,suitable for simultaneous multi-roll splice
Constant tension control to avoid frequent tension setting.
Suitable for cold stamping/lamination film materials

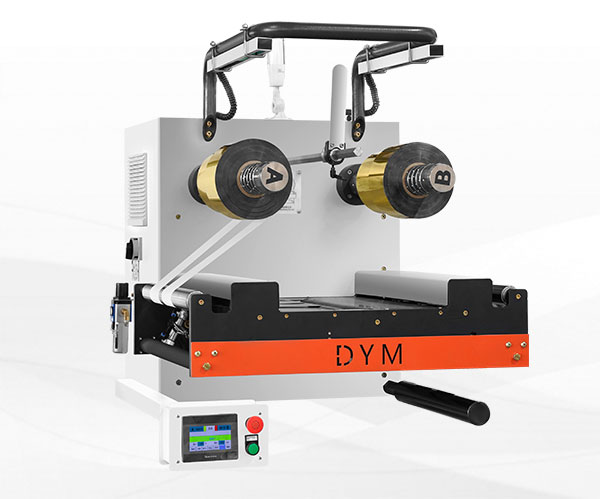

WBU 不停机冷烫放卷机
-
特点
-
产品参数
Model
WBU-450
WBU-550
Max Web Width
450mm
550mm
Max Unwind Diameter
430mm 430mm
Max Machine Speed
150m/min 150m/min
Unwind Tension Precision
±2% ±2%
Paper Splicing Method
Overlap splice Overlap splice
Pick Up Material Alignment
Laser positioning Laser positioning
Total Power
4kw 4kw
Voltage
380V/50hz, 3phase 380V/50hz, 3phase
Machine Weight
200kgs 200kgs
Machine Specifica
750x1100x700mm
850x1300x800m
Note: All technical parameters are subject to change without notice .
